Description
HEATING ONLY LINE VOLTAGE THERMOSTAT

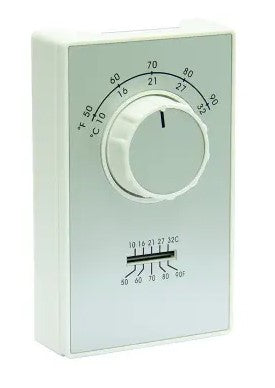

The Columbus Electric wall mounted line voltage thermostat is suitable for direct connection with any resistance heating elements and unit heaters. This thermostat has a snap action switch operated by a bimetal actuator and is available in a single pole, double pole with positive off, two stage heat. Heat only model. Other options include a build in thermometer and/or 6 inch wire leads.
Specifications
Electrical Rating:
- 22 A Resistive @ 125/250/277 Vac.
- 3/4 HP @ 125 Vac.
- 1-1/2 HP @ 250/277 Vac.
Differential
- Heat Approximately: 2º F
- Heat Anticipator Models: 1/2º F
Temperature Range
- Setting Range: 50ºF to 90ºF
- Heating: 50ºF to 90ºF
- 75F Hi Stop: 35F to 75F
Dimensions
- Height - 4-3/4"
- Width - 2-7/8"
- Depth - 2-7/8"
| Manufacturer | TPI (Markel/Raywall/Fostoria) |
|---|---|
| Voltage | 120/208/240/277 Volt |
| Amperage | 22 Amp |
| Color | White |
| Width of Product | 2.75 Inch |
| Height of Product | 4.75 Inch |
| Depth | 2.75 Inch |
| Finish | Plastic |
| Listing Agency | UL/CSA |
| Type of Product | Thermostats |
| Switch Type | SPST |
| Manufacturer Part Number | ET9STS |
| Product Condition | New |
| Wireless Capabilities | No Wireless Capabilities |
| Temperature Range | 50 to 90 Degrees F |
| Thermostat Mount Orientation | Vertical Mounting |
| Thermostat Programmability | Non Programmable Thermostats |
| Thermostat Type | Line Voltage Thermostat |
ET9STS
