Description
Product Description

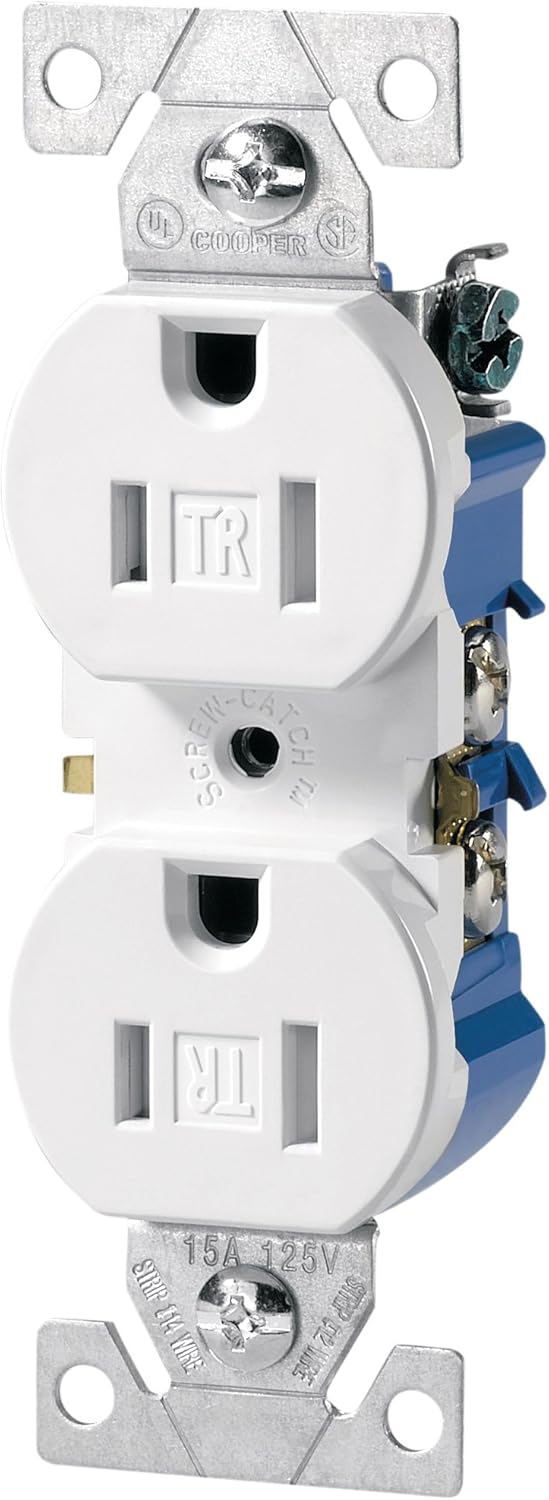

The Eaton TR270W tamper resistant duplex receptacle is comes with 15-amp, 125-volt, 5-15 NEMA rating. It provide compliance with 2011 NEC article 406.12 that states that all receptacles installed in dwelling units must be tamper resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. Tamper resistant designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for No.14 and No.12 wire to speed installation. Side-wire terminals accept up to No.10 solid or stranded wire and push-in terminals accept No.14 solid wire. Side and push wiring method. cULus listed to UL498, file no. E15058, NOM certified. NAFTA compliant. Available in white color. Measures 2/3-Inch length by 1-1/3-Inch width by 4-1/5-Inch height. Whether a home’s style is traditional, modern, casual, cozy or rustic, it will demand more from wiring devices than in years past. Eaton is dedicated to providing the up-to-date wiring device solutions; solutions that increase energy efficiency, increase productivity, promote safety at work and in the home, and produce reliable performance. Eaton is a trusted name in electrical products for over 175-years.
From the Manufacturer
Cooper Wiring Devices TR270 Standard Duty 15-Amp, 125-Volt Duplex Receptacles: Provides compliance with 2011 NEC Article 406.11 that states that all receptacles installed in dwelling units must be tamper resistant. Ideal for living rooms, play rooms, bedrooms, garages, and any space where children may come in contact with electrical devices. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. "TR" designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps. Oversized strap that provides a solid base for mounting an virtually eliminates "floating" installations. Side-wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
