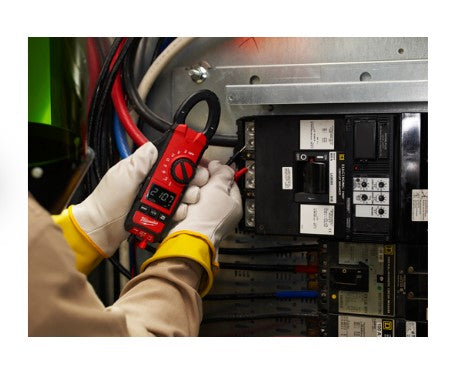

Milwaukee Clamp Meter for HVAC/R 2236-20

Sale price$185.00


Milwaukee Clamp Meter for HVAC/R 2236-20



(1)Clamp Meter for HVAC/R(2236-20)
(1)Dual Banana Thermocouple
(1)Electrical Test Lead Set
(2)AA Batteries
  • Measures up to 600 amps AC, Large 1.30” jaw opening
  • Thin Jaw Profile for easier wire measurement in panels or in bundles
  • Wide Voltage range to 600 AC/DC volts
  • True-RMS for accurate measurement in all applications
  • Built-In Voltage Detector and LED Work Light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for Flame Rectification
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip


Tool Warranty 5 Years
Battery Type Alkaline (AA)
Display Type High Contrast White on Black
Switch Type Dial
Length 9 1/2"
Jaw Size 1.3"
Safety Rating CAT III 600V
Current AC 600A
Microamps DC600μA
Voltage AC DC600V
Resistance 6 kΩ
Continuity Yes
Capacitance Yes
Contact Temperature -40° F to 752° F (-40° C to 400° C)
Hold Yes
Display Backlight Yes
Non Contact Voltage Yes
LED Work Light Yes
Rugged Over molding Yes
Temp Yes
Dual Banana Thermocouple Input Yes
Indication Visual (for NCVD)
