Description

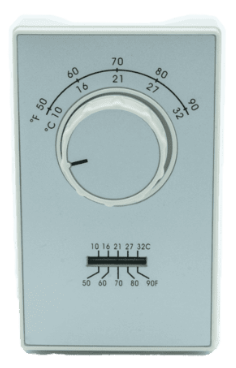

The ETD9 Two-Position Room Thermostats are designed for on/off control with set points from 50 to 90 deg F. The ETD9STS is a heating/cooling thermostat and uses a snap-acting switch for line or low voltage applications. Products include Fahrenheit and Celsius temperature scales and are suitable for direct connection with any resistance heating elements and unit heaters. A thermometer comes standard on all models.
| Backlight |
No |
|---|---|
| Changeover |
Manual |
| Display |
Mechanical |
| Filter Monitor |
No |
| Keypad Lockout |
No |
| Mount |
Wall |
| Power Type |
Hardwired |
| Programmability |
Non-Programmable |
| Programmable Fan |
No |
| Remote Inputs |
No |
| Remote Outputs |
No |
| Set Point Limiting |
No |
| Stages |
Single |
| Temperature |
50°F (10°C) Min, 90°F (32°C) Max |
| Terminal C or X |
No |
| Terminal R, Rh, or Rc |
No |
| Terminal W or W1 |
No |
| Terminal W2 |
No |
| Touchscreen |
No |
| Voltage |
24 to 277V |
| Wi-Fi |
No |
