Description

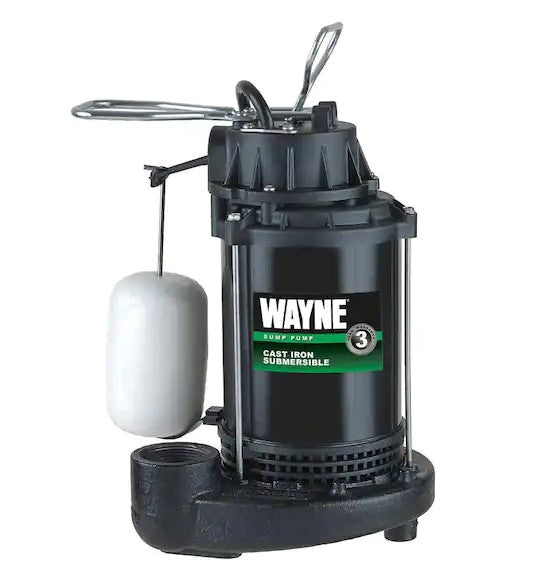

- Wayne CDU800 1/2 HP Automatic Submersible Sump Pump
- Assembled in the US with foreign and domestic parts
- The Hardest Working Pumps, You'll Never Hear™
- Energy efficient motors & engineered design provide an ultra quiet experience
- Epoxy-Coated Steel & Cast Iron Construction
- Rugged, corrosion-resistant design provides long life in sump applications
- 1/2 HP, Thermally Protected 120V PCS Motor
- Energy efficient, oil-filled design, for quiet operation and extend motor life
- Integrated, Guard-Protected Vertical Float Switch w/ Solid Polypropylene Float
- Prevents switch hang-ups from debris for reliable automatic operation
- Tested to 1 million cycles*; For performance that lasts
- Unique Top Suction Design Reduces Clogging
- Prevents air lock occurrences and eliminates needs for a "weep hole"
- Glass Reinforced Polycarbonate Impeller
- Abrasion resistant design provides efficient and reliable output
- 1-1/2" NPT Discharge
- Complies with building-codes for residential applications
- Upper and Lower Ball Bearings
- Sealed oil-bath engineering for increased lifespan and virtually silent operation
- Premium John Crane Carbon/Ceramic Shaft Seals & Cast Iron Seal Plate
- High-quality components helps prevent leaks and galvanic corrosion
- Designed For Use In 11-Inch or Larger Sump Basins
- 8-Foot, water-resistant power cord for easier access to power outlet
- *WAYNE Water Pumps Exceed an Average 1 Million Test Cycles
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
5100
GPH @ 5 feet
4500
GPH @ 10 feet
3840
GPH @ 15 feet
3060
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
9 Inches
Float Off
4 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
18.5 Pounds
Consumer Warranty
3 Years
Product Width
9.75 Inches
Product Height
11.5 Inches
UPC
