Description

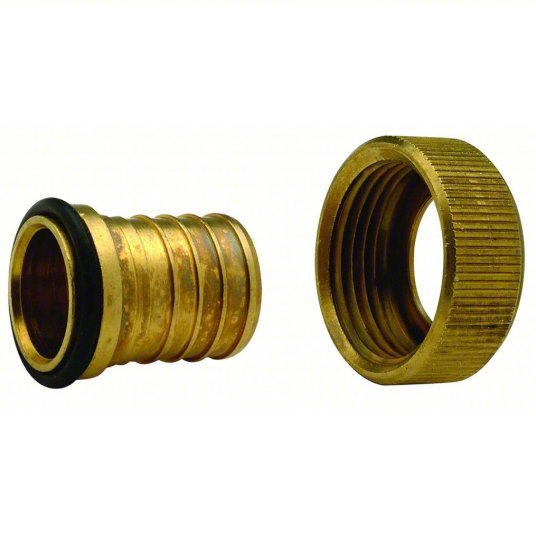

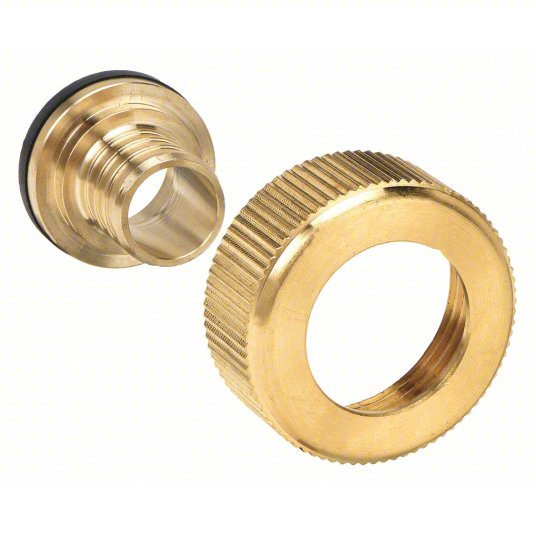

Brass barbed tube fittings are crimped to hold the fitting and tubing together. Brass, an alloy of copper and zinc, is strong, highly conductive, and resists corrosion from water, heat, acids, minerals, and peaty soils. These fittings are suitable for use in hot and cold water distribution systems.
BrandZURN
Combine - Fitting Shape SubheadStraight with Swivel
Combine - Material and GradeBrass
Temperature Range33 °F to 200 °F
Connector TypeAdapter
PEX Connection MethodCrimp
Fitting Side A Connection TypeBarbed
Fitting Side A Tube Inner Diameter1 in
Fitting Side B Connection TypeFNPT
Fitting Side B Pipe Size3/4 in
Overall Length1-7/32 in
Barb StyleSingle Barb
Resistance PropertiesCorrosion-Resistant; Freeze Damage-Resistant; Mineral Buildup-Resistant; Rust-Resistant
For Media TypePotable Water
StandardsCSA B137.5; F1807; F877; NSF/ANSI 14; NSF/ANSI 372; NSF/ANSI 61
Maximum Operating Pressure80 psi
Fitting Size1 in ID x 3/4 in Pipe
